SGS ASTM A36 Guyed Wire Tower For Communication

Name: SGS ASTM A36 Guyed Wire Tower For Communication
Brand: ChangTong
Price: 1000 USD

China SGS ASTM A36 Guyed Wire Tower For Communication wholesale

Brand Name : ChangTong

Model Number : LXT190409-7

Certification : SGS, ISO2008:9001

Place of Origin : China

MOQ : 1 pi

Price : USD1000-1500/Ton

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20000Ton/year

Delivery Time : 30-45days

Packaging Details : Container transpor, the general situation of the tower for metal reinforcement bind,Bolts are bagged from professional containers.

Material : SteelQ345/Q235

Appearance Treatment : Hot-dip galvanized/powder coated/painting

Height : 10m-120m/Customized

Design wind speed : 36m/s

Connection structure : flange connection/bolts connection

Quantity of Platform : 1/2/3/4/Customized

Lifetime : More than 20years

Contact Now

Triangle Hot-Dip Galvanized High-Quality Antanna Telecom Guyed Wire Mast Tower For Communication

Quick Details

Place of Origin:: Hebei, China

Brand Name:: TY

Model Number:: guyed tower

Product name:: Triangle hot-dip galvanized high-quality telecom guyed wire tower

Material:: SteelQ345/Q235/ASTM A36 A572 Gr50

Appearance Treatment:: Hot-dip galvanized/powder coated/painting

Height of Tower:: 5m-180m/Customized

Design wind speed:: 30m/s

Connection structure:: flange connection/bolts connection

Quantity of Platform:: 1/2/3/4/Customized

Lifetime:: 20 Years

Antenna Type:: GSM, RRU,CDMA, MW etc.

design software:: MS TOWER

Supply Ability

Supply Ability:: 30000 Ton/Tons per Year

Packaging & Delivery

Packaging Details: Container transpor, the general situation of the tower for metal reinforcement bind,Bolts are bagged from professional containers.

Port: Tianjin Port

Lead Time :

Quantity(Tons)	1 - 10	>10
Est. Time(days)	20	To be negotiated

Design
1. Design Code	TIA/EIA-222-G/F
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q345B, Q345C,Q3455D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
Test
17. Factory test	Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test

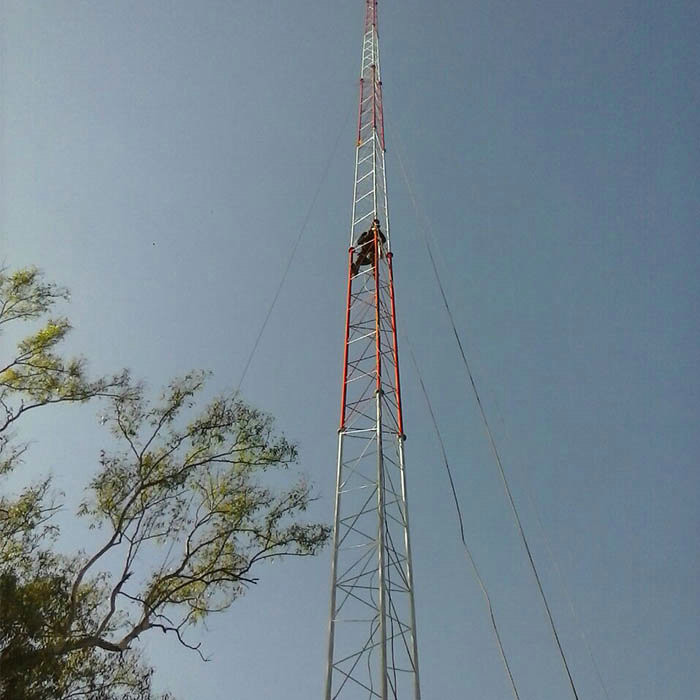

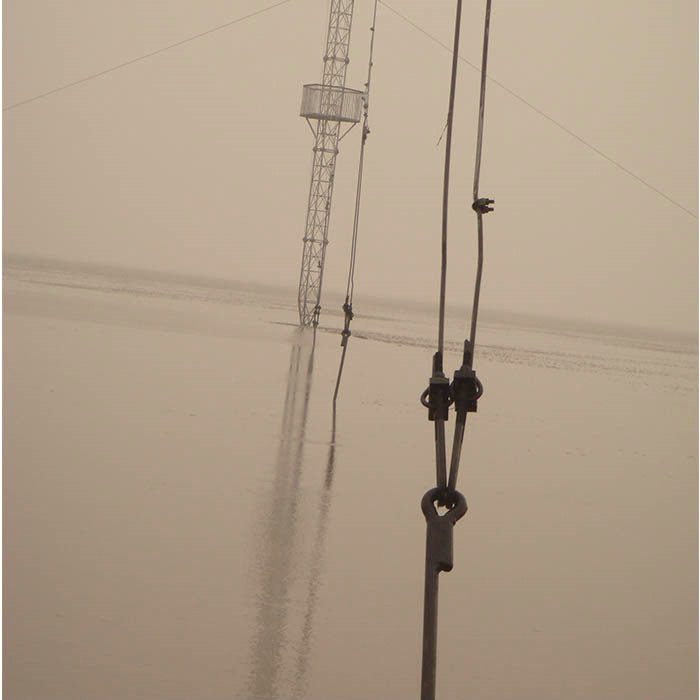

product show

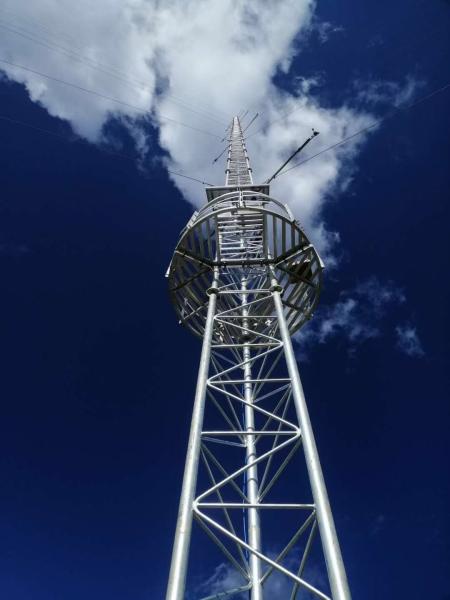

SGS ASTM A36 Guyed Wire Tower For Communication

Our Company

Hebei Chang Tong Steel Structure Co., Ltd. is specialized in the production, design, installation and maintenance of beautification tower, bionic tree communications tower, anemometer tower, communication tower, telecommunication tower, single tube tower, etc. And undertakes the design, manufacturing and construction of all kinds of steel structure. Our company has rich experience more than 20 years and has 5 senior engineers and five professional production lines. Fast delivery time 25 days,high efficient supply ability 1000 tons monthly,so we are sure to deliver your goods strictly as you required and meet your order quantity to the fullest.
